Stainless steel flange
Flanges are disk-shaped parts most commonly used in piping. Flanges are used in pairs and with matching flanges on valves.In pipeline engineering, flanges are mainly used for the connection of pipelines.In the need to connect the pipeline, all kinds of installation of a flange, low pressure pipeline can use wire flange, the use of welding flange more than 4 kilograms of pressure.Add sealing gasket between two flanges, and then tighten with bolt.Flanges with different pressures have different thicknesses and use different bolts.
Contact us
Message

Product details

Stainless steel flange


Product NameStainless steel flange
Grade410，430，201，304，304L，321，316，316L，317L，347H，309S，310S，904L，S32205，2507，254SMOS，32760，253MA，N08926，etc.
1.4301，1.4307，1.4541，1.4401，1.4404，1.4571，1.4438，1.4539，1.4547，1.4529，1.4562，1.4410，1.4878，1.4845，1.4828，1.4876，2.4858，2.4819
Thickness0.3-150mm，(SCH10-XXS)
Specifications10-1220mm， (3/8"-100") etc.
PressurePN0.5-PN500
StandardGB,AISI,ASTM,DIN,EN,SUS,UNS etc
InspectionISO,SGS,BV and so on.
Packaging1. cases packed in wooden cases2. paper packaging3. plastic packing4. foam packagingPackaging according to customer requirements or products
Payment TermsT/T  L/C and Western Union etc
Packaging & Deliveryin bundle,plastic bags,thin film,wooden pallet,standard seaworthy export packing or as customer demands
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)   24-26CBM40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)   54CBM40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)    68CBM

Stainless steel flange


PRODUCT ADVANTAGES

1.Environmental protection: can effectively reduce environmental pollution.
2.Corrosion resistance: Strong anti-fouling, acid, corrosion, wear resistance, non-radioactive.
3.Surface cleanliness: The product surface is smooth and compact, not easy to be polluted by dust, and has good self-cleanliness.

4.Easy Maintenance: A slight loss is easy to repair.


Stainless steel flange


Stainless steel flange

SurfaceCharacteristicSummary of Manufacturing MethodApplication
NO.1Silvery whiteHot rolled to specified thicknessDo not need to have a glossy surface use
lackluster
NO.2DSilvery whiteAfter cold rolling, heat treatment and pickling are carried outGeneral material, deep material
NO.2BGloss is stronger than No.2DAfter No.2D treatment, the final light cold rolling is carried out through the polishing rollerThe general material
BAAs bright as a sixpenceNo standard, but usually a bright annealed surface with high reflectivity.Building materials, kitchen utensils
NO.3Rough lappingGrind with 100~200# (unit) strop tapeBuilding materials, kitchen utensils
NO.4Intermediate grindingPolished surface obtained by grinding with 150~180# strop abrasive tapeBuilding materials, kitchen utensils
NO.240Fine lappingGrinding with 240# strop abrasive tapekitchenware
NO.320Very fine grindingGrinding was carried out with 320# strop abrasive tapekitchenware
NO.400The luster is close to BAUse 400# polishing wheel to grindGeneral timber, building timber, kitchen appliances
HLHairline grindingSuitable particle material for hair stripe grinding (150~240#) with many grainsBuilding, construction material
NO.7It's close to mirror grindingUse a 600# rotary polishing wheel to grindFor art or decoration
NO.8Mirror ultrafinishThe mirror is ground with a polishing wheelReflector, for decoration


PRODUCT TESTING


Stainless steel flange

Carbon (C) : 1. Improve the deformation resistance and tensile strength of the blade;2. Enhance hardness and improve wear resistance.

Cr (Cr) : 1. Enhance hardness, tensile strength and toughness;2. Anti-wear and corrosion.

Cobalt (CO) : 1. Increase the hardness and strength so that it can withstand high temperature quenching;2. Used to enhance certain individual properties of other elements in more complex alloys.

Copper (Cu) : 1. Enhance corrosion resistance;2. Enhance wear resistance.

Manganese (Mn) : 1. Increase the quenchability, wear resistance and tensile strength;2. Removal of oxygen from molten metal by separate oxidation and separate vaporization;3. When added in large quantities, the hardness is enhanced, but the brittleness is improved.

Molybdenum (Mo) : 1. Enhanced strength, hardness, quenchability and toughness;2. Improve machinability and corrosion resistance.

Nickel (Ni) : 1. Enhance strength, hardness and corrosion resistance.

Phosphorus (P) : Enhanced strength, machinability and hardness.

2. When the concentration is too large, it is easy to crack

Silicon (Si) : 1. enhanced ductility;2. Increase the tensile strength;3. Removal of oxygen from molten metal by separate oxidation and separate vaporization.

Sulphur (S) : small amount used to improve machinability.

Tungsten (W) : Increases strength, hardness and toughness.

Vanadium (V) : Increases strength, hardness and seismic resistance.

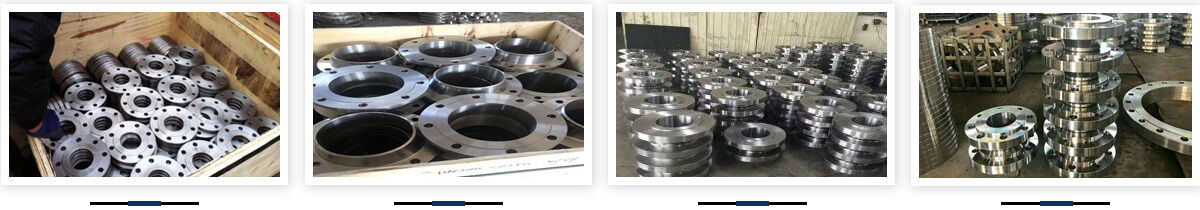

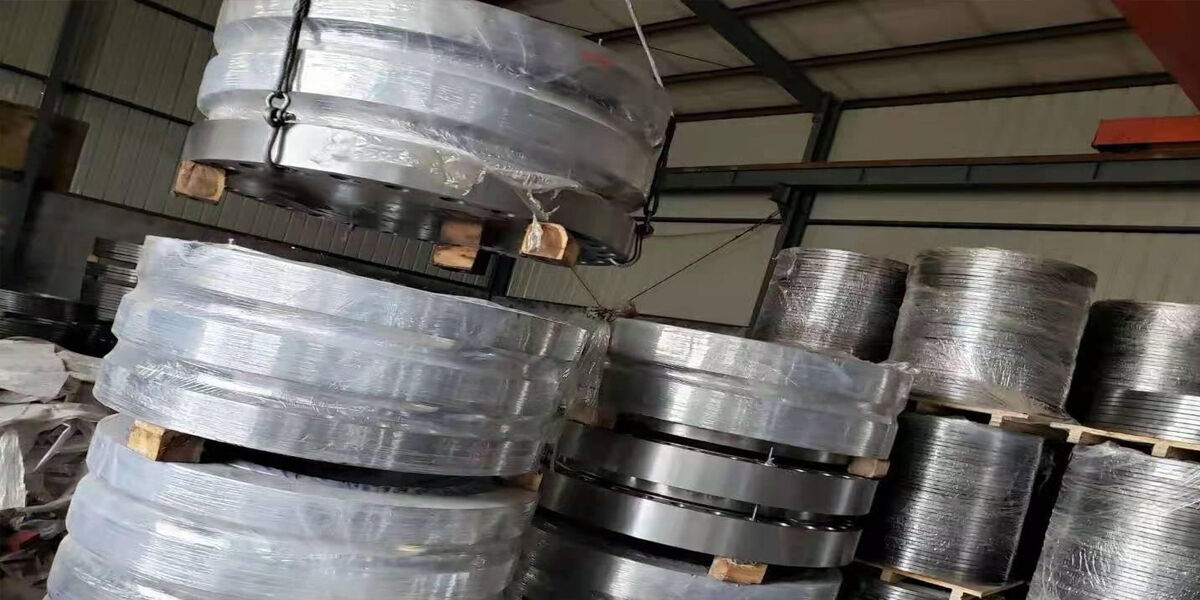

PCAKAGE & DELICIRY


Stainless steel flange


FAQ

Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:What are the shipping ports?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:How long does your delivery time take?
A:In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special circumstances occur.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.
Q:How to pack the products?
A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Q:What is your working time?
A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next
working day.
